McIntosh MT2 Precision Turntable

McIntosh MT2 front
McIntosh MT2 Precision Turntable

Binghamton, NY | March 8, 2018 McIntosh, the global leader in prestigious home entertainment and ultimate-quality audio for over 65 years, is proud to announce the MT2 Precision Turntable.

The McIntosh MT2 Precision Turntable combines the latest in turntable technology and design to deliver both superb performance and accurate playback. A full complement of features allows for all recordings to be reproduced with flawless realism. Its advanced electronic and mechanical design will give many years of smooth, trouble-free operation. A subtle green glow emanates from under the platter and the outside edges of the plinth for a touch of refined ambiance and connection to the McIntosh design aesthetic.

Advertising

SKYbyGramophone logo 300x60 white background

The MT2 plays both 33-1/3 and 45 rpm records and is virtually ready to use out of the box as tracking force, anti-skate force, cartridge overhang and arm height are all preset from the factory for maximum performance. The remaining setup steps are simple, allowing the user to be enjoying their vinyl in no time.

The MT2 comes with a moving coil cartridge that has a high enough output to make it compatible with not only moving coil phono inputs but also moving magnet inputs. The cartridge’s high impedance and high output voltage ensures noise free musical reproduction. This unique cartridge design features an alloy cantilever and an elliptical diamond stylus with exceptional tracking capability. The tonearm is constructed from dural-aluminum with special damping materials and is light weight yet highly rigid. The noise free vertical bearings feature two precision ceramic surfaces with damping fluid; the horizontal bearing is a gimballed sapphire design.

The belt driven, solid black outer platter is made from a special dynamically balanced polyoxymethylene (POM) and is over 1” thick. This heftiness helps to both resist and absorb external vibrations that can cause noise during playback; its large mass also provides the perfect flywheel action for stable playback speed. The inner platter is made of CNC-precision milled aluminum. The platters rotate on a polished and tempered steel shaft in a sintered bronze bushing. The DC motor is driven by an external voltage-stabilized power supply and is completely decoupled from the chassis, isolating the record from any mechanical interference. Its sturdy plinth has a resonance optimized and highly compressed wood base with black lacquer finish, while the top and middle acrylic plates help absorb unwanted vibrations.

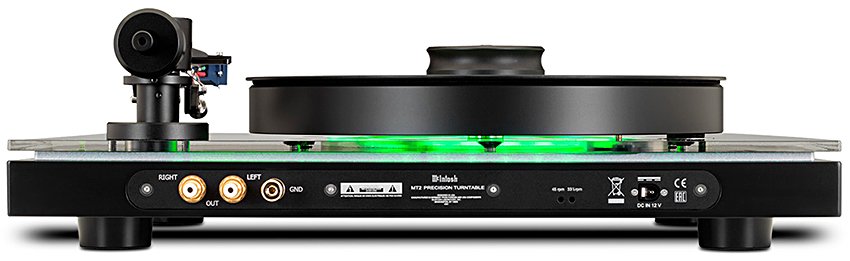

McIntosh MT2 back

A clear, contoured dust cover is included. The MT2 turntable is compatible with a variety of McIntosh phono preamplifiers, stereo preamplifiers, integrated amplifiers and home theater processors with phono inputs.

Pricing and Availability
Orders for the MT2 can now be placed with Authorized McIntosh dealers with shipping expected to begin in April.

Advertising

Logo 468x120

Suggested retail price (VAT, shipping and any customs duties related to current standards of individual countries are excluded): $4,000 USD



Cartridge Specifications
Cartridge TypeMoving Coil, High Output
Frequency Response20Hz to 50kHz
Recommended Tracking Force2.0 g
StylusElliptical Diamond
Output Level2.5 mV at 5 cm/s
Channel Separation35dB at 1kHz
Channel DifferenceLess than 0.5 dB at 1kHz
Cantilever MaterialAluminum
Load Impedance1000 Ohms recommended (Preamp MC Input)
Compliance15 x 10-6 cm/dyne
Total Mass6.3 g
Tonearm Specifications
BearingSapphire and Ceramic
AdjustmentsVertical Tracking Angle, Antiskate, Azimuth
Arm TubeDural-Aluminum
CounterweightEccentric
Turntable Specifications
Playback Speeds33 1/3 and 45
PlatterDynamically balanced polyoxymethylene (POM)
Motor TypeDC Motor with Stainless Steel Brushes
Platter BearingPolished and tempered steel shaft in sintered bronze bushings
Speed ControlServo System
Connectivity
Stereo Outputs Unbalanced1
Control
Power Control Input0
Power Control Output0
Platter LightN/A
Speed Control Fine AdjustmentYes
General Specifications
Dust Cover IncludedYes
Weights & Dimensions
Dimensions (W x H x D)17-13/16" (45.2cm) x 5" (12.7cm) (6" (15.2cm) with dust cover) x 17" (43.2cm)
Note: Tone Arm Height will vary depending on the type of Cartridge installed.
Weight29 lbs (13.2 kg)
Shipping Weight39 lbs (17.6 kg)





About McIntosh
Founded in 1949, McIntosh Laboratory is known for offering distinguished quality audio products, superior customer service and the ultimate experience in music and film. All McIntosh products are handcrafted at the Binghamton, NY factory by over 150 employees with a passion for music and the McIntosh heritage. McIntosh continues to define the ultimate home entertainment experience for discriminating consumers around the world, with the iconic “McIntosh Blue” Watt Meters globally recognized as a symbol of quality audio. Since its inception, McIntosh has been powering some of the most important moments in music history and pop culture. From President Lyndon Johnson’s inauguration speech to Woodstock to the infamous Grateful Dead “Wall of Sound,” McIntosh has not only witnessed history, it has shaped it. With McIntosh, customers have the ability to create their own premium audio experience – and truly live their music. Visit www.mcintoshlabs.com to learn more.
