Eversolo DMP-A10 Streamer Preamplifier

Shenzhen, China | 2024 – Eversolo DMP-A10: Crafted Like a Piece of Art! The DMP-A10 chassis blends modern aesthetics with romanticism, precision-engineered with CNC technology. At 430mm, it fits seamlessly into high-end audio systems, combining functionality and elegance.

Advertising

Precision Meets Purity

With a high-speed electrical isolation system , the DMP-A10 separates noise and interference from different circuit boards. The complete physical isolation eliminates any possible interference to audio circuits in the transmission of system circuit signals, ensuring that the audio signal remains pure and undisturbed. The display panel features a shielding design as well, resulting in outstanding audio clarity and precision for an unrivaled listening experience.

Isolated USB Audio, Ultimate Accuracy

By incorporating an advanced electrical isolation circuit, the DMP-A10 minimizes interference from high-noise power sources and grounding loop issues when connecting external DACs and USB devices. Utilizing iCoupler ® technology, it transmits both the clock signal and data to the isolated side in the correct time order and then resynchronizes them to maintain consistency. This ensures that USB signals are transmitted with high fidelity, reducing jitter and maintaining signal accuracy.

Double Subwoofer Output

Featured two subwoofer output ports, the DMP-A10 allows you to connect single or dual subwoofers as needed, or even disable the subwoofer function. MIXER and STEREO modes can be switched with ease, independent adjustments of subwoofer gain, crossover frequency, and delay are available as well.

(*Subwoofer function is only available for PCM signals below 192KHz.)

OCXO Clock System

The Eversolo custom-developed temperature control technology for OCXO clock system ensures both audio crystal oscillators(45.1584MHz and 49.152MHz) operate at a constant optimal temperature point, thus eliminating frequency fluctuations caused by temperature changes, delivering extremely low phase noise. Each oscillator undergoes a strict testing process. Therefore, with jitter levels below 50fs, more accurate clock signals are provided to the audio system, adding more clarity, detail and air in sound.

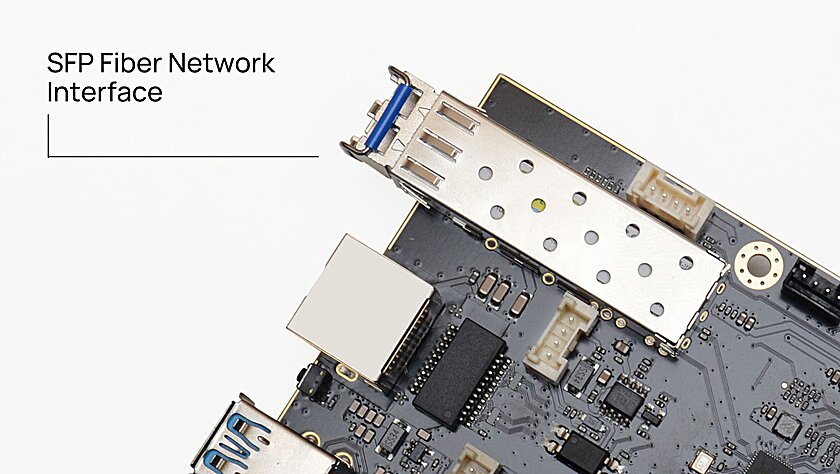

SFP Fiber Network Interface

To eliminate interference from high-frequency noise in network switches and other network equipment, the DMP-A10 introduces an SFP Fiber port, allowing users to connect DMP-A10 to local network via fiber optics. In this case, cleaner audio is delivered without electrical connection between the network switch and the DMP-A10. Traditional RJ45 Ethernet connections are also supported for easy integration. (*SFP module needs to be purchased separately.)

Crystal Clear Audio

Featured with excellent conductivity and signal transmission, silver-plated single-crystal copper wires are used to connect DMP-A10’s audio terminals, bringing extra benefit to audio with more clarity, transparency and details.

Room Correction Technology

With Eversolo Digital Room Correction, the DMP-A10 analyzes your listening environment with the high-precision microphone, adjusting sound frequencies through complex algorithms to eliminate acoustic issues. The result? A listening experience that feels more immersive and lifelike, tailored specifically to your space.

Acoustic measurement

To achieve optimal accuracy during room correction, please ensure a quiet environment and limit any movement.

Measurement curve

Measuring room acoustic curves.

Best listening position

Room correction supports connection via the device’s USB port or a microphone connected to the mobile phone, and you can also use the built-in microphone of your phone. To ensure measurement accuracy, it is recommended to use a professional measurement microphone.

Digital to Digital Converter

The DMP-A10 supports DDC(Digital to Digital Converter) functionality. Digital signals from USB audio input, coaxial/optical input, and ARC input can be output as SPDIF signals or analog signals after various EQ adjustments. Additionally, analog signal input can be captured by the high-spec ADC (up to 192kHz) , then output as SPDIF signals or analog signals after EQ adjustments.

Robust Power, Ultra-Low Noise

To further enhance sound purity, the DMP-A10 features dual power supplies with ultra-low background noise, providing stable power output for both the digital system and analog audio circuits. The ripple of the analog audio power supply can be reduced to below 30µVrms, creating a quiet and pure listening environment. Additionally, it incorporates a patented intelligent switching technology for the linear power supply voltage input, enabling compatibility with voltages worldwide without flipping switches.

Drips Every Note into Your Heart

THD+N:-122dB

SNR:130dB

DNR:130dB

Fully Balanced Analog Preamplifier Circuit

The DMP-A10 is equipped with a high-performance fully balanced preamp circuit, supporting XLR/RCA analog inputs. It features a +10dB analog gain and the R-2R analog volume control, ensuring ultra-low noise and distortion, providing better signal-to-noise ratio, dynamic range, and other performance metrics.

Powered by EOS

The Eversolo Original Sampling-rate Audio Engine(EOS) ensures original sample rate output from your favorite music apps. The DMP-A10 bypasses the SRC limitations, sending audio to your speakers without any changes. It also supports direct output from third-party apps like Apple Music for high-resolution lossless playback.

Cutting-Edge Global Technology

As a flagship all-in-one streamer, material selection for DMP-A10 is extremely meticulous. The DMP-A10 is built with audiophile-grade components from worldwide. WIMA capacitors from Germany, TI audio operational amplifiers from US, NICHICON audiophile capacitance and Murata SMT parts from Japan, every detail is engineered for superior sound quality.

XMOS316 Audio Processor

Using the third-generation XMOS316 processor, the DMP-A10 delivers faster processing and USB bandwidth, supporting lossless transmission of audio data. USB ports support up to DSD512 Native and PCM768kHz@32bit. Optical and Coaxial ports support DOP64, PCM192kHz@24Bit.

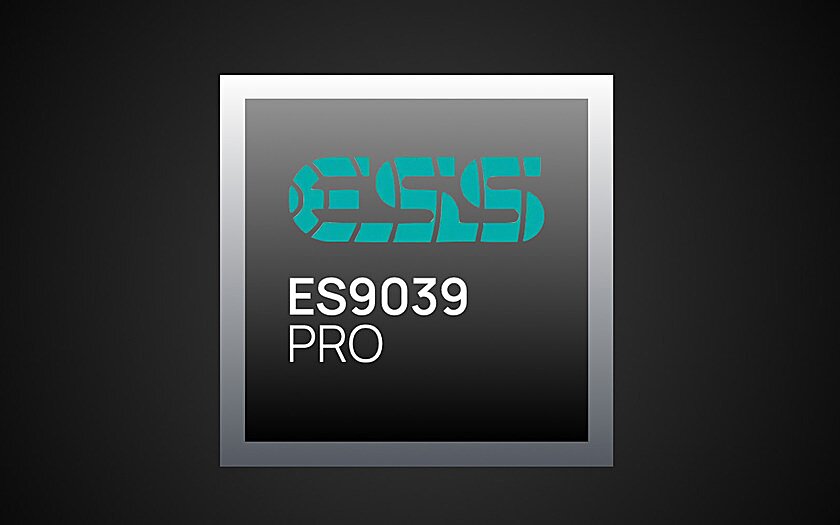

Next-Level DAC Solution

Powered by the industry-leading ES9039PRO DAC chip, the DMP-A10 brings audio to life with its HyperStream IV architecture and enhanced signal processing capabilities, significantly reducing distortion and noise to provide pure audio output. It also introduces a new clock management series to minimize the impact of jitter on audio signals.

Stream Your Favorite Music Services

Enjoy direct access to mainstream music services on DMP-A10. Whether it’s TIDAL, Qobuz, Amazon Music, Tuneln, IDAGIO, Radio Paradise, SoundCloud, Calm Radio, KKbox or Highresaudio, the DMP-A10 covers it all. (More music services will be added in the future.)

Wireless Streaming Hub

Advertising

With support for Roon Ready*, Tidal Connect, Squeeze Connect, and DLNA protocols, the DMP-A10 serves as your streaming hub at home. Wherever you are in your house, just sit back and enjoy.

Home Music Center

In addition to two high-speed USB 3.0 ports and two sets of SSD slots, the DMP-A10 supports NFS, SMB, UPnP, and more sharing protocols, allowing you to stream media from NAS devices or network drives effortlessly. Even high-bitrate files like DSD512 master recordings can be played without stuttering. Additionally, it supports loading and playing music from WebDAV, Plex, Emby and Jellyfin.

Magical Volume Control

A fully balanced analog volume adjustment network composed of precision resistors and relays achieves accurate volume control, effectively suppressing distortion and noise in the analog signal. It also features volume protection, automatically reducing excessive volume to the designated safe level when startup or switching inputs. The incorporation of R2R analog volume control ensures that the DAC can operate at its optimal Bypass state continuously.

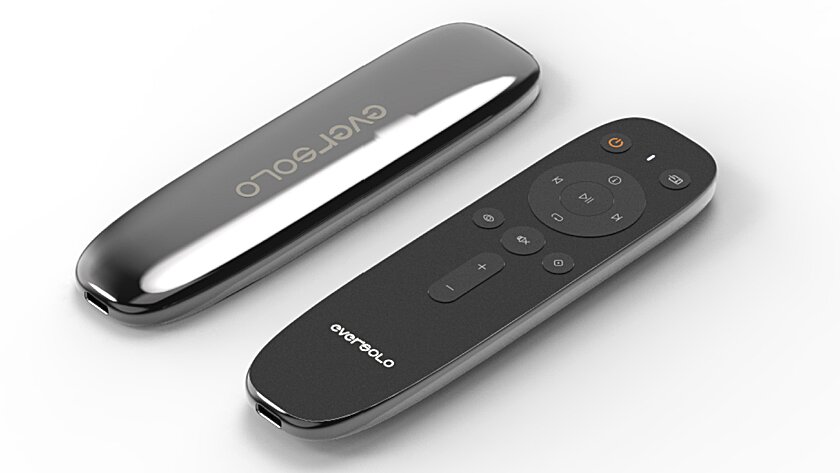

Control at Your Fingertips

The DMP-A10 comes with multiple control options. Except for the touch screen and mobile control application, there is a Bluetooth and infrared remote control included with the device. Made from a single cast of alloy material, the remote has a refined and streamlined appearance that fits perfectly in your hand, providing effortless control over your music.

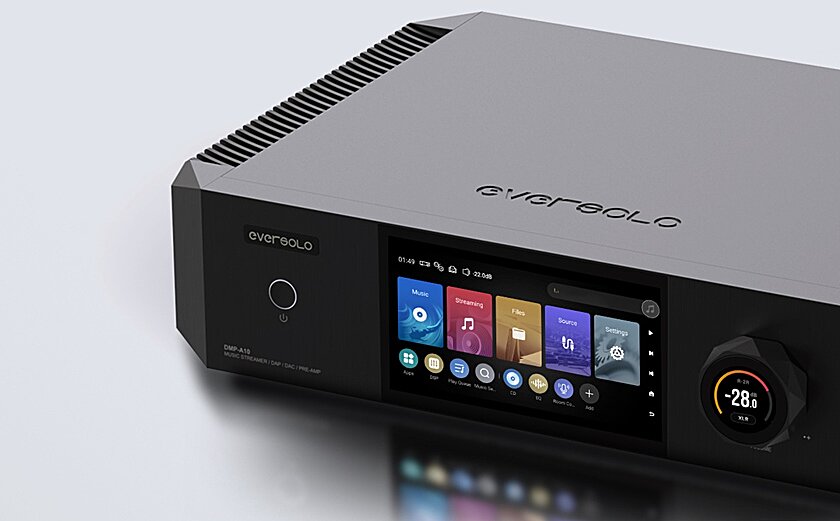

Bigger and Better

The upgraded control panel features a larger touch screen display for an immersive user experience. With operation experience similar to mobile devices, the DMP-A10’s fully intelligent music interface is intuitive and smooth, offering better viewing experience like larger album art displays. It is designed not only for exceptional sound but also for a luxurious visual enjoyment.

Global Music Search

With the DMP-A10, you can search across multiple music services in one go, making it easier than ever to find your favorite tracks, seamlessly connecting to all your music services.

*Note: Integrated music services require account login to enable global search.

Master-grade Playback

The DMP-A10 supports almost every high-resolution music format on the market, as well as common CD-quality lossless music files like FLAC, WAV, APE, SACD ISO, and DSD (dsf/dff/ dst), delivering a rich auditory feast.

Local Storage Expansion

Two M.2 NVMe SSD slots on the bottom allow for up to 4TB*2 storage expansion. With convenient installations and better thermal design, it provides fast and stable support for high-quality local playback; External Storage devices can be connected through the USB 3.0 port as well.

Perfect Sound, Anytime

The DMP-A10 features a 10-band PEQ(Parametric Equalizer) module, allowing precise adjustments to specific frequencies, gain, and Q factors, which significantly enhances sound quality. In different listening environments, sound reflections and absorptions can vary, causing certain frequencies to be too strong or weak. By using PEQ fine-tuning, the DMP-A10 ensures that the sound remains natural and pleasing. Additionally, it supports FIR filter imports, loudness adjustments, and dynamic compression.

Stylish VU Meters

The DMP-A10 tailored multiple dynamic VU meters for audiophiles;

The music sounds great, and also looks good!

Highly Intelligent

The DMP-A10 features a built-in UI and mobile app control for iPhone, Android, and iPad devices. Beyond basic playback and system settings, the app offers direct access to your music library and streaming services. Whether you’re selecting a song or enjoying album arts, it delivers anything you need conveniently. It also comes with a dual-mode remote control (infrared and Bluetooth), and a Trigger Out interface to achieve coordinated control of your back-end devices; Additionally, it offers Wake-on-LAN function(requires wired network connection).

Personalized Music Management

The Eversolo provides a comprehensive and nice-looking local music library. You can add music files from local drives or network storage devices, and the library automatically fetches available music metadata from the cloud, matching album covers, artist information, and CUE files. You can create custom playlists, organizing music by different tags such as genre, sample rate, album and artists.

Preserving Timeless Quality

The DMP-A10 allows CD playback and ripping by connecting a USB optical drive. Using a unique data verification and error correction mechanism, it ensures the lossless preservation of CD audio data. The CD app includes a smart algorithm to fetch album and track names(for officially released CDs), automatically generating information for albums and artists.

Note: Metadata retrieval is not guaranteed for all CDs. Online databases may not always have up-to-date information.
